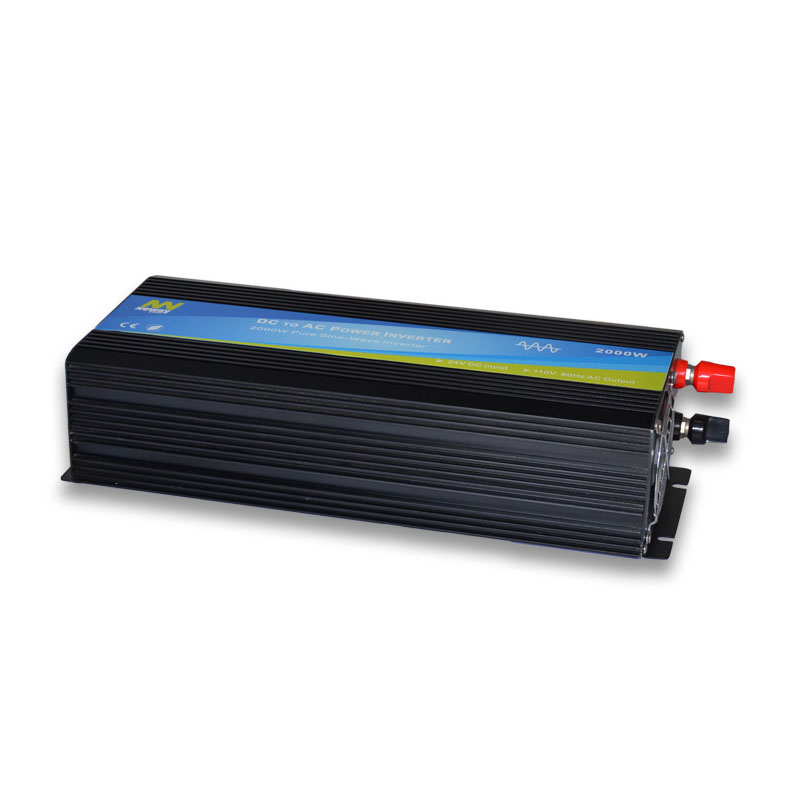

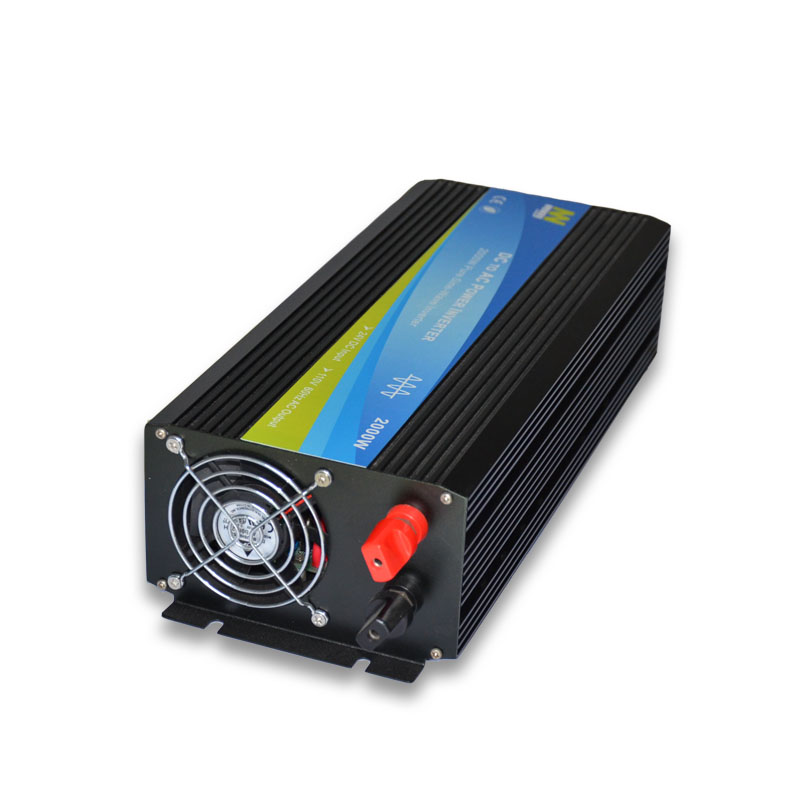

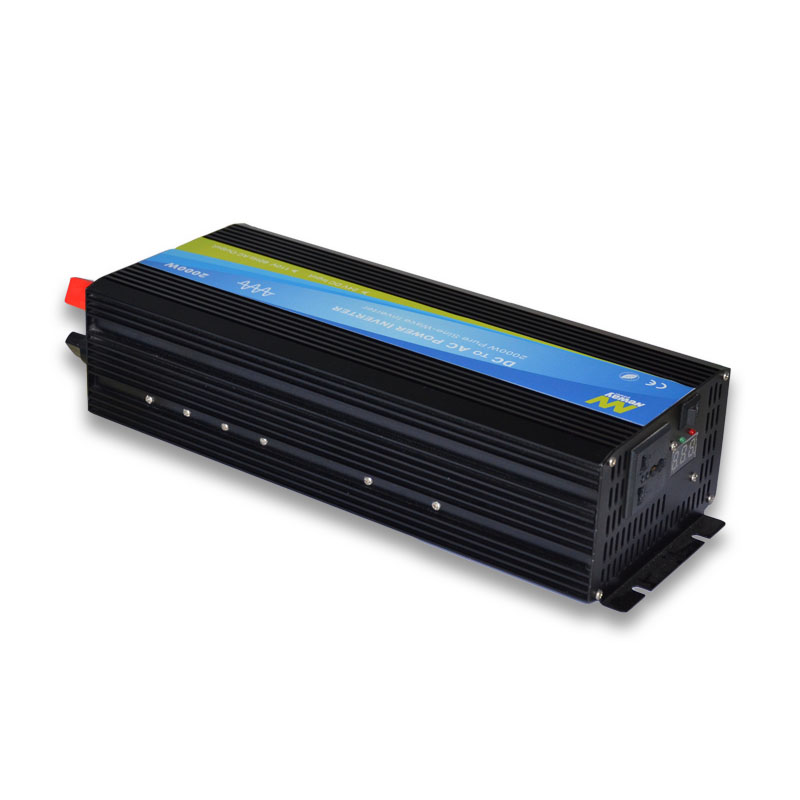

2000W Pure Sinewave DC-AC Inverters China

NW2000 pure sine wave inverters series are used to operate sensitive electronic devices that require high quality waveform with little harmonic distortion. The NW2000 pure sine wave inverter will be ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.
The advantage of our PSW inverter is powerful loading capacity than the normal, especially when it loads fridge, pump, air conditioner and so on.

Features
Technical Data

• High frequency design
• Low frequency stability
• Max efficiency up to 90%
• Over 2 times high surge power for motor rated application
• Soft-start to reduce inrush current
• Super loading ability
• Full protection:
Input protection: Reverse polarity / Over voltage / Low battery alarm and shutdown
Output protection: Short circuit / Overload / Over temperature
• Ideal for powering inductive loads such as motor, and other sensitive loads, medical equipment and solar systems.
•1 year warranty
•CE,Rohs & IEC approved

Model No.	NW2000
Rated Power	2000W
Rated Power	2500VA
Surge Power	>4000W
Input Voltage	12V/24V/48V DC
Output Voltage	100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3%
Frequency	50 / 60Hz +/- 0.3Hz
Output Waveform	Pure Sine Wave (THD < 3%)
Efficiency	88% for 12V; 92% for 24V;93% for 48V
No Load Current Draw(A)	0.7(12V),0.4(24V)0.3(48V)
Input Voltage Regulation	11-15VDC / 22-30VDC / 44-60VDC

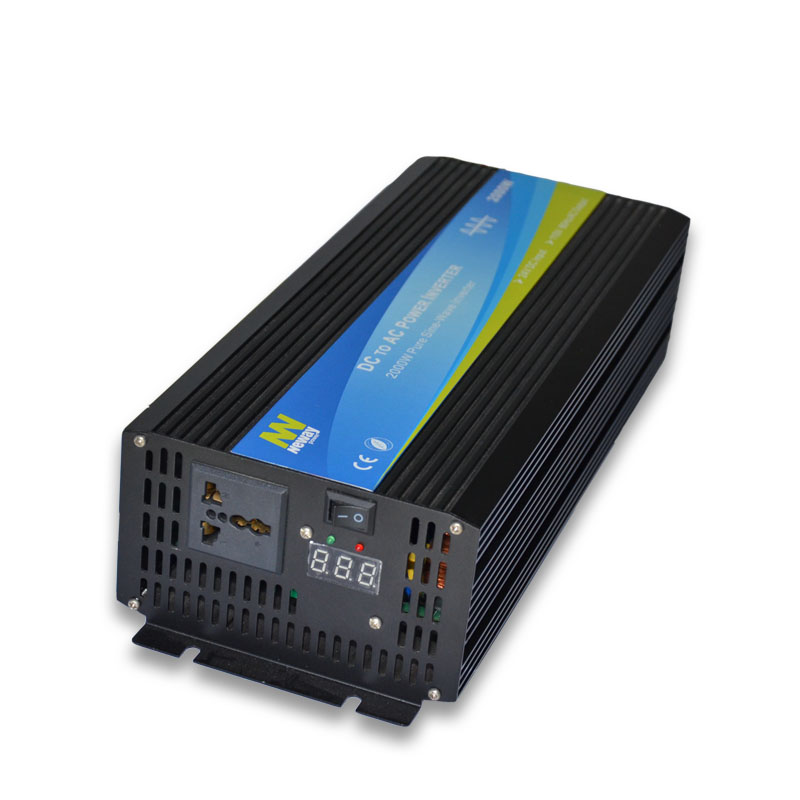

LED Indicator	Red LED indicates failure, Green LED indicates normal
Digital Display	Alternate shows the DC input voltage and AC loading % of maximum load
Protection	Overload, Short Circuit, Reverse Polarity (Fuse), Over Temperature, Low battery, High battery
Operating Temperature Range	0 – 40℃
Storage Temperature Range	-30℃ to 70℃
Cooling	Temperature control the cooling fan
Dimensions(mm)	350X153X88
Weight( kgs)	4.6
