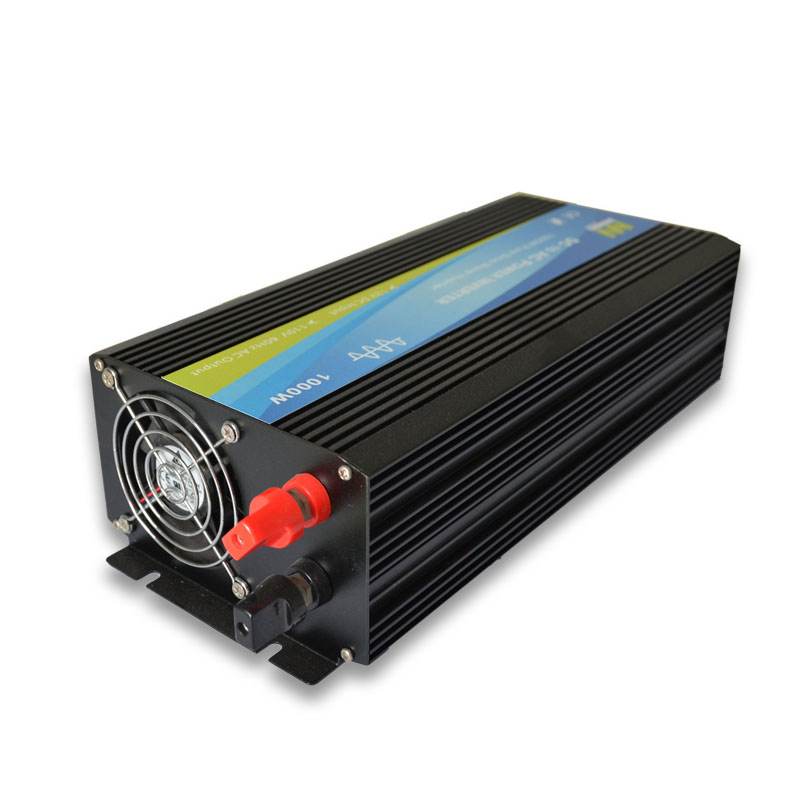

NW1000 1000W Pure Sine Wave Inverter China
NW1500 pure sine wave inverters series are used to operate sensitive electronic devices that require high quality waveform with little harmonic distortion. The NW1500 pure sine wave inverter will be ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.
The advantage of our PSW inverter is powerful loading capacity than the normal, especially when it loads fridge, pump, air conditioner and so on.
High frequency design
Low frequency stability
Max efficiency up to 90%
Over 2 times high surge power for motor rated application
Soft-start to reduce inrush current
Super loading ability
Full protection:
Input protection: Reverse polarity / Over voltage / Low battery alarm and shutdown
Output protection: Short circuit / Overload / Over temperature
Ideal for powering inductive loads such as motor, and other sensitive loads, medical equipment and solar systems.
1 year warranty
CE,Rohs & IEC approved
rated application
Soft-start to reduce inrush current
| Model No. | NW1000 |
| Rated Power | 1000W |
| 1500VA | |
| Surge Power | >2000W |
| Input Voltage | 12V/24V/48V DC |
| Output Voltage | 100 / 110 / 120V ± 5% or 220 / 230 / 240V ± 3% |
| Frequency | 50 / 60Hz +/- 0.3Hz |
| Output Waveform | Pure Sine Wave (THD < 3%) |
| Efficiency | 88% for 12V; 92% for 24V;93% for 48V |
| No Load Current Draw(A) | 0.6(12V), 0.3(24V), 0.2(48V) |
| Input Voltage Regulation | 11-15VDC / 22-30VDC / 44-60VDC |
| LED Indicator | Red LED indicates failure, Green LED indicates normal |
| Digital Display | Alternate shows the DC input voltage and AC loading % of maximum load |
| Protection | Overload, Short Circuit, Reverse Polarity (Fuse), Over Temperature, Low battery, High battery |
| Operating Temperature Range | 0 – 40℃ |
| Storage Temperature Range | -30℃ to 70℃ |
| Cooling | Temperature control the cooling fan |
| Dimensions(mm) | 280x153x88 |
| Weight( kgs) | 2.7 |
