NS40 40A Solar Charger Controller

NS series solar charge controller is the LATEST design. It offers convenient LED display, optimized structure design, advanced digital technique and high quality.The multiple load work modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamps etc.

Features
Technical Data

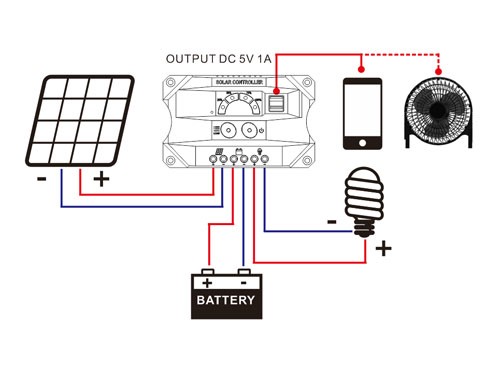

Connection

PWM charging Use MOSFET as electronic switch Intuitive LED indicators showing battery voltage and charging status Manual control the output of the load Industrial grade design USB output 5VDC

LCD display is optional for this item.

Electronic protections:

Battery over charge protection Battery over discharge protection Over load protection Reverse current protection at night Reverse connection protection of battery Overheat protection and short circuit protection of USB output

Model	NS30D
Rated Current	30A
System Voltage	12V/24V Auto
PV open circuit voltage	<50V
Float charge voltage	13.8V/27.6V
LVD	10.8V/21.6V
LVR	12.6V/25.2V
Boost voltage	Sealed 14.4V/28.8V	Duration 2 hrs
	GEL 14.2V/28.4V
	Flooded 14.6V/29.2V
HVD	16.0V/32.0V
HVR	15.5V/31.0V
No load loss	12mA(12V),14mA(24V)
Charge/Discharge voltage drop	<0.3V/<0.18V
USB output	5V/1A
Specification of cable	≤16mm²
Working temperature	—10℃ ~ 50℃
Storage temperature	—20℃ ~ 60℃
Humidity	10%~90%，NC
Dimension	160mm×95mm×45mm
Weight	400g
QTY	30PCS/CTN
G.W.	12.5KGS
Carton Dimension	515mm360mm165mm
